BENEFITS:

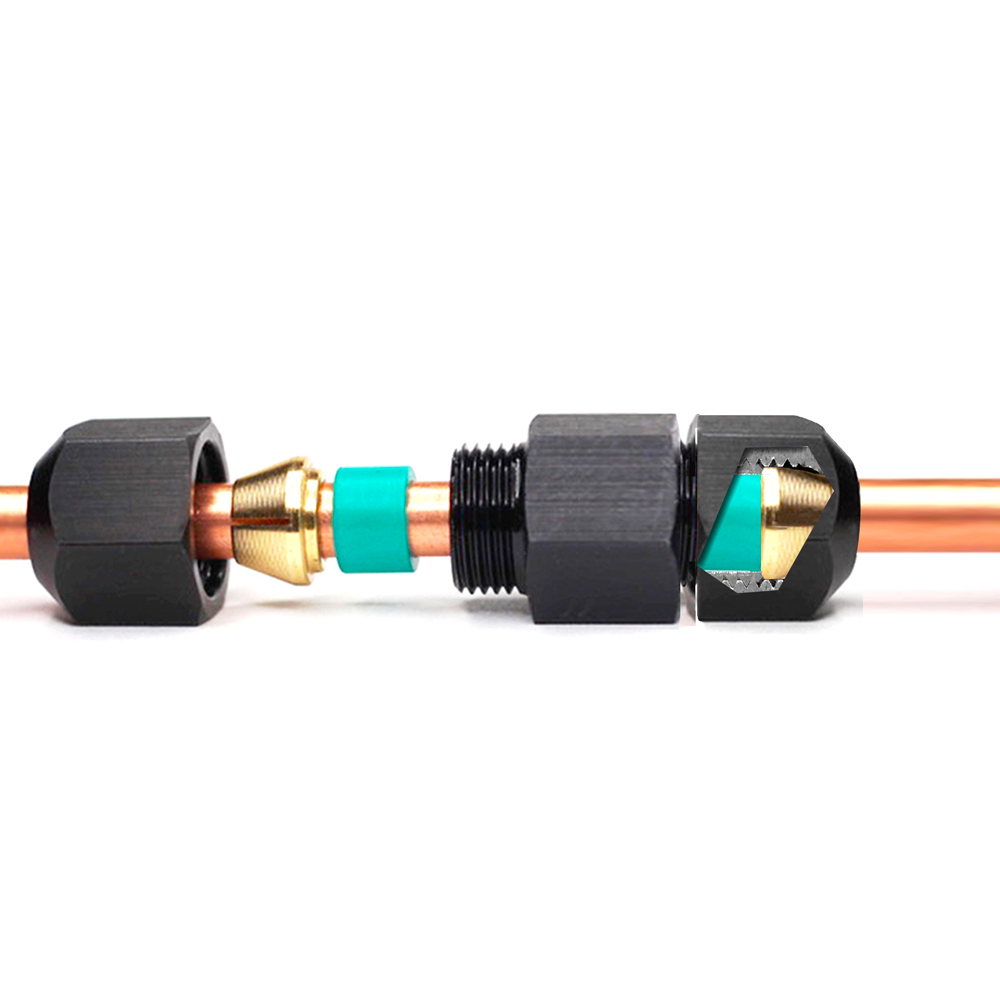

Superior To Traditional Compression Fittings HNBR Seal Sleeve dramatically expands the sealing surface area . High-tech Anti-Vibration Tension Ring resists vibration leaks. Ensures durability in tough applications 5-minute install - with a wrench (no special tools, no adhesives required) Compensates for out-of-round tubing Burst-tested to 2600 PSI _____________ TECH SPECS _____________ PRODUCT PARAMETERS • Applications Refrigeration Air Conditioning Heat Pump VRF and VRV Mini-Split • Continuous Operating Temperature - 40ºF to 300ºF / - 40º to 150ºC • Seal Sleeve Temperature Range - 40ºF to 300ºF / - 40º to 150ºC • Maximum Rated Operating and Abnormal Pressure 800 psi / 55 bar / 5,500 kPa • Burst Pressure 3x Maximum operating and abnormal pressure 2,400 psi / 165 bar / 16,500 kPa • Vacuum Capability <200 Microns • Leak Tightness < 3 g/yr • Size & Type Availability (Inches) 1/4, 3/8, 1/2, 5/8, 3/4, 7/8 Straight, Elbow, Swage and Flare FITTING MATERIALS • Body: Anodized Al • Nut: Anodized Al • AVTR: Brass • Seal Sleave: HNBR FITTING WARRANTY • 15-year warranty COMPATIBILITY • Approved lubricants PAO, POE, PVE, AB and MO • Approved Connections Copper to Copper Copper to Steel Steel to Steel Copper to Al Al to Al Steel to Al AGENCY APPROVALS • UL Listed Refrigerant Fitting SA45993-20230130 • UL 109 Pull Test • UL 109 Vibration Test • UL 1963 Gasket and Seals compliant • ICC-ES PMG -1764 • SAE J2064 Leakage Evaluation • GM10011C Hydrostatic, Vibration, Heat Age and Cold Age APPROVED REFRIGERANTS • All A1, A2 and A2L Refrigerants— • A3 tests forthcoming • Not suitable for R744
